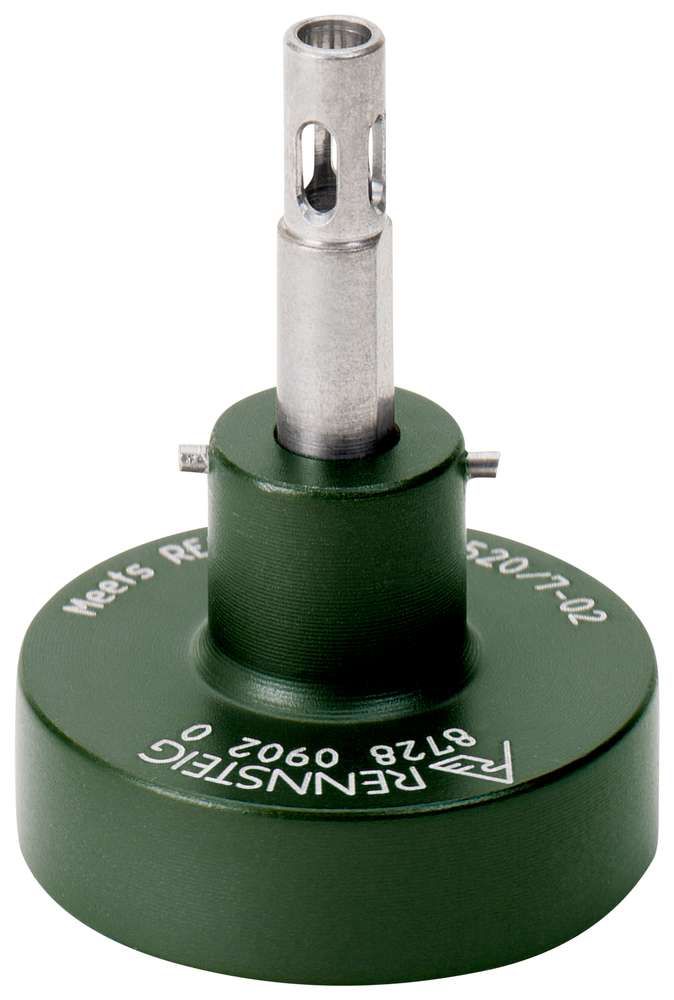

Rennsteig – Single locator for 8728 0000 6 – 8728 0902 0
₹9,514.00 Save:₹4,685.00(33%)
Available in stock
- Spring loaded pin for precise positioning of the contact
- For crimp tools with adapter ring
- Identical design of common locators according to MIL/SAE AS22520
- Primarily developed for AS39029 and EN3155 contacts and similar ones
- Secure, reproducible crimps
Description
- Spring loaded pin for precise positioning of the contact
- For crimp tools with adapter ring
- Identical design of common locators according to MIL/SAE AS22520
- Primarily developed for AS39029 and EN3155 contacts and similar ones
- Secure, reproducible crimps
Technical data
| Art No | 8728 0902 0 |
| EAN | 4049002114021 |
| Weight | 10g |
| Dimension | 24 x 24 x 30 mm |
| Reference acc. to. | AS22520/7-02 |

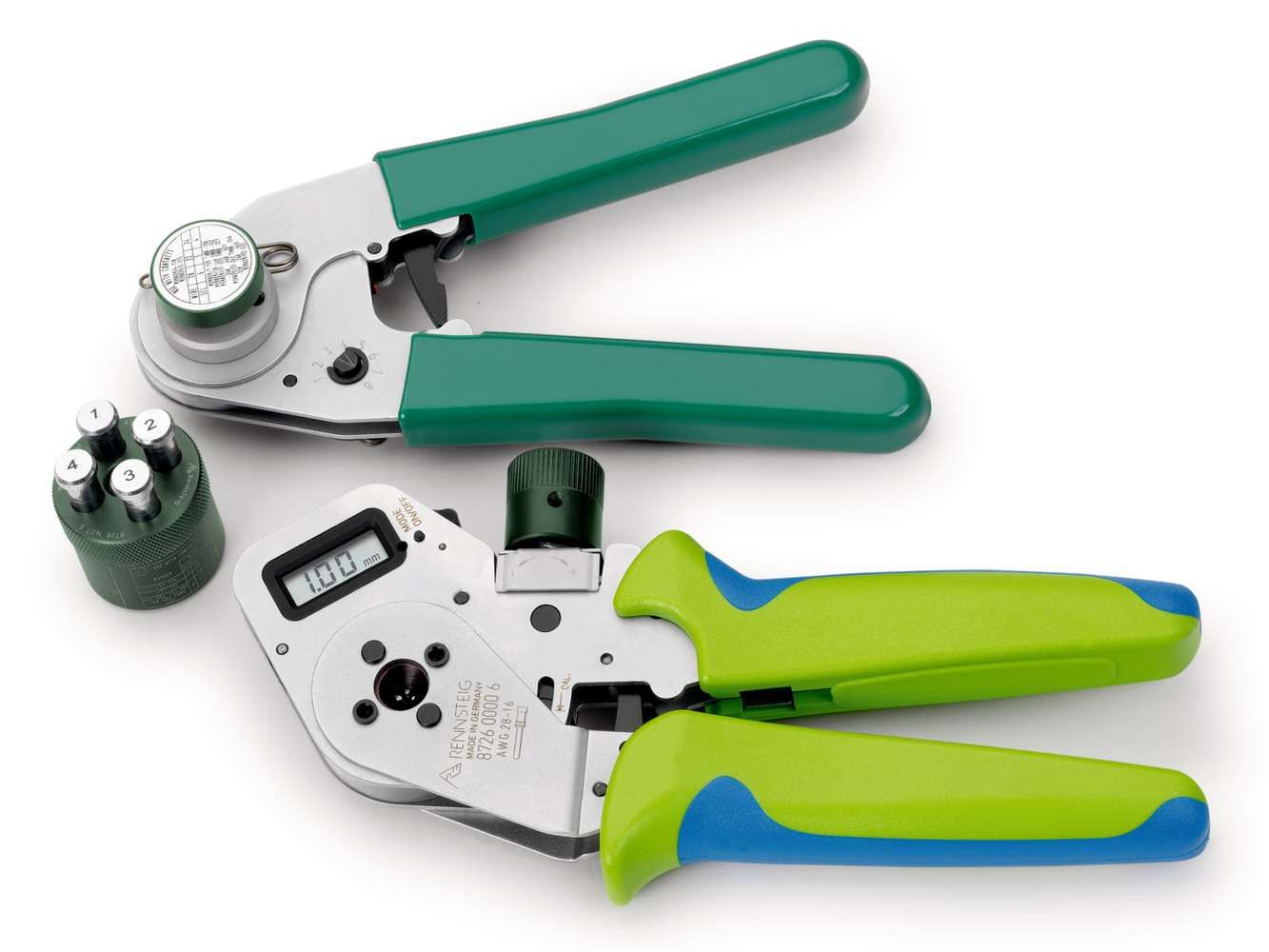

| For DigiCrimp | 8726 0000 6, 8726 0000 61 |
| For Selector Crimp | 8728 0000 6 |
| For CM 25-3 crimping unit | 636 0726 3 0 |
