KNIPEX – Circlip Tool For internal and external circlips up to 1,000 mm nominal siz – 46 10 100 ₹172,392.00 Save:₹84,910.00(33%)
Share
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
KNIPEX - Circlip Tool For internal and external circlips up to 1,000 mm nominal siz - 46 10 100
Compare Wishlist
-33%

KNIPEX – Circlip Tool For internal and external circlips up to 1,000 mm nominal siz – 46 10 100

in Knipex
Sku: 46 10 100

₹172,392.00 Save:₹84,910.00(33%)

Available in stock

  • Universal usage for large circlips with nominal diameters of 16" to 39 3/8" (400 - 1000 mm)
  • Reliable opening and closing of the circlips and holding by self-locking precision spindle drive
  • For fitting and removing circlips in one operation
  • Circlips are securely held due to short, direct attachment

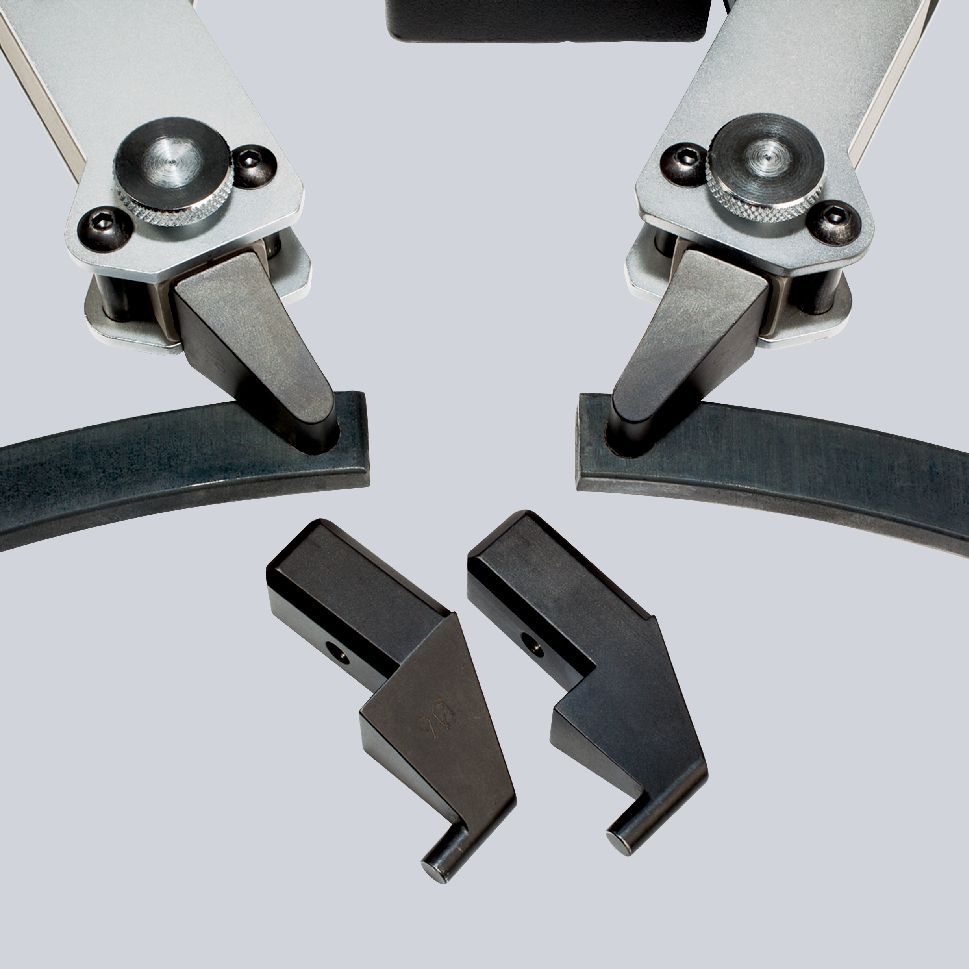

  • Replaceable tips with 15/64" (6 mm) and 23/64" (9 mm) diameters, for perfect adaptation to the actuation bores in the circlips

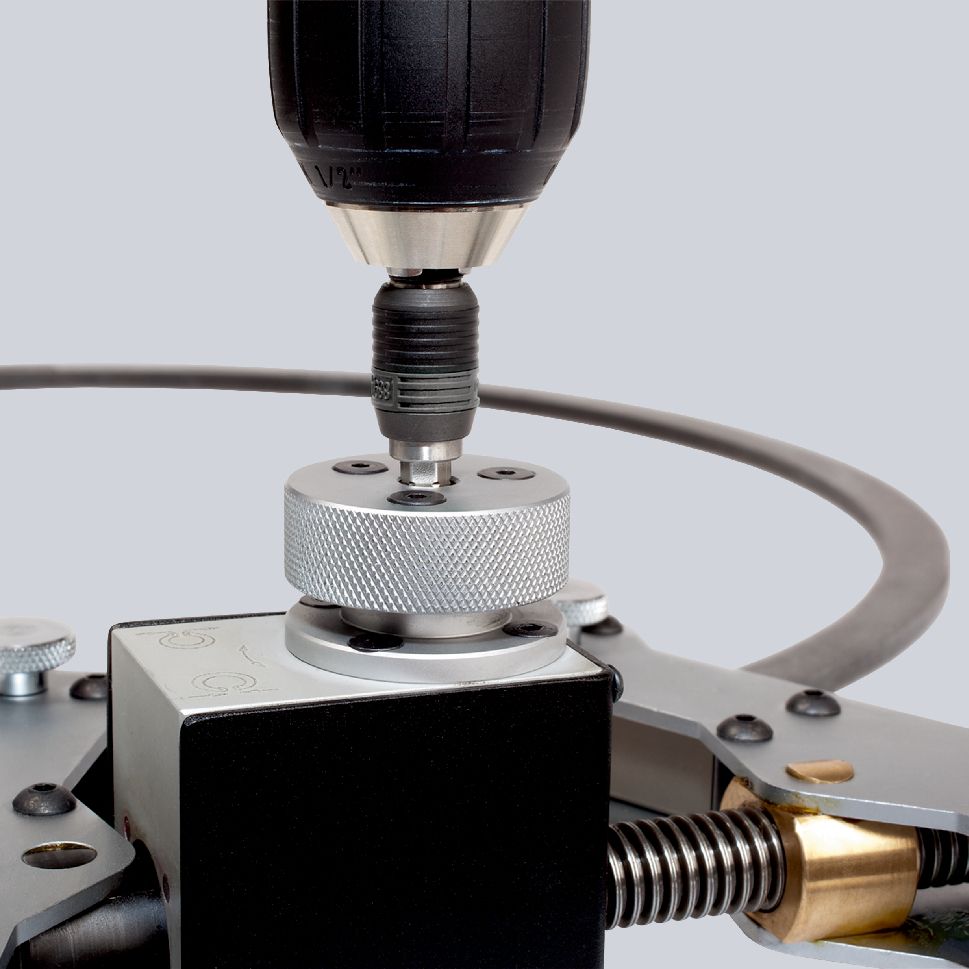

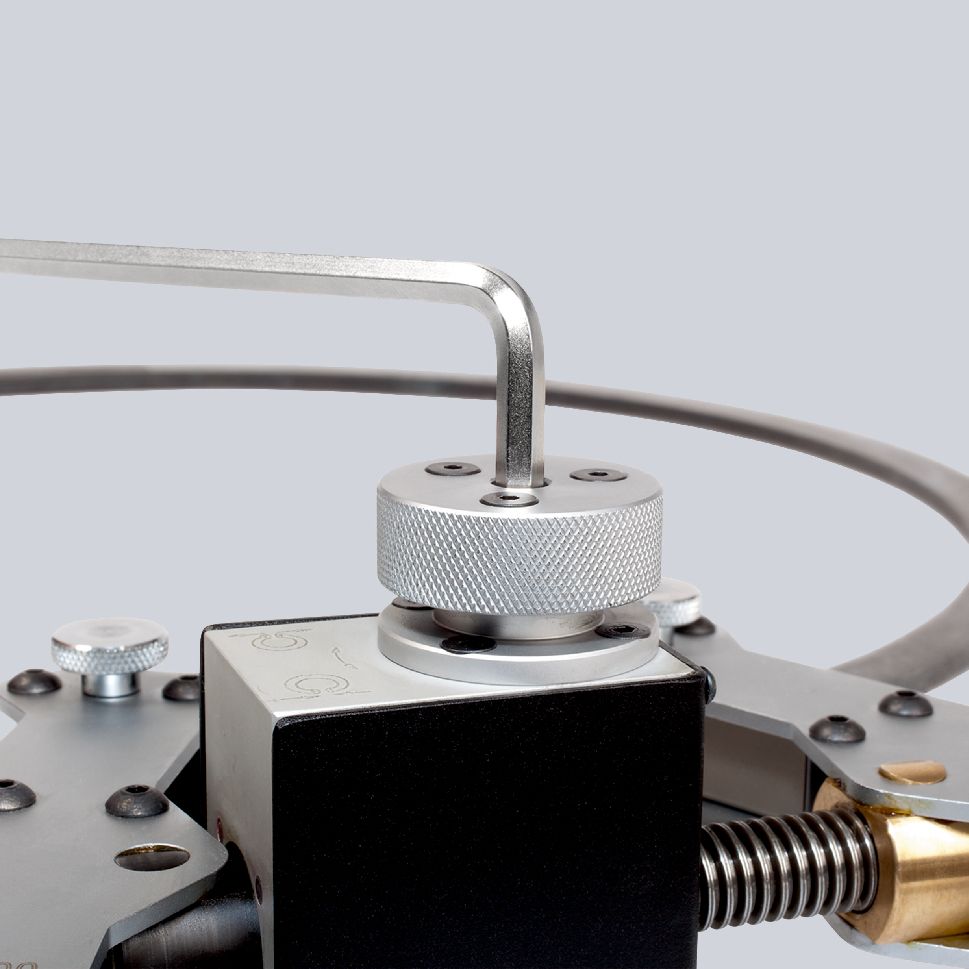

  • Optional operation with hexagonal key, ratchet wrench or cordless screwdriver
  • Areas of application e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace - wherever very high forces and torques are transmitted with large shafts and bearings
  • Tip material: chrome vanadium electric steel
Part Number
 46 10 100
UPC
 843221019532
Country of Origin
Germany
Length 10 3/4"
Width 6 3/4"
Height
3 1/4"
Weight
 4.745 lbs.
1000 Volt Insulated
 No
Material Type
Chrome vanadium steel, forged, oil-hardened
Circlip - Internal Bore Size
 15 3/4" to 39 3/8"
Circlip - External Shaft Size
16" to 39 3/8"
Reach
 contains SVHC
RoHS
 not applicable
Compare Wishlist
Categories: , Brand:
Shipping & Returns on this item See Details
Despatch within 3-5 working days See Details
Description
  • Universal usage for large circlips with nominal diameters of 16″ to 39 3/8″ (400 – 1000 mm)
  • Reliable opening and closing of the circlips and holding by self-locking precision spindle drive
  • For fitting and removing circlips in one operation
  • Circlips are securely held due to short, direct attachment
  • Replaceable tips with 15/64″ (6 mm) and 23/64″ (9 mm) diameters, for perfect adaptation to the actuation bores in the circlips
  • Optional operation with hexagonal key, ratchet wrench or cordless screwdriver
  • Areas of application e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace – wherever very high forces and torques are transmitted with large shafts and bearings
  • Tip material: chrome vanadium electric steel
Additional information
Weight 2.150028 kg
